Silver Carbon 48 Pitch Ultralight Portal Transmission Tiny Gearbox for 1/10 Performance LCG Chassis Comp Builds Rigs
Silver Carbon 48 Pitch Ultralight Portal Transmission Tiny Gearbox for 1/10 Performance LCG Chassis Comp Builds Rigs
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: YFGRGT
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Material: Composite Material
Model Number: Carbon Tiny Gearbox
Origin: Mainland China
Quantity: 1 pcs
Recommend Age: 14+y
Size: 1/10
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Hydraulic Transmission Box
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Feature:

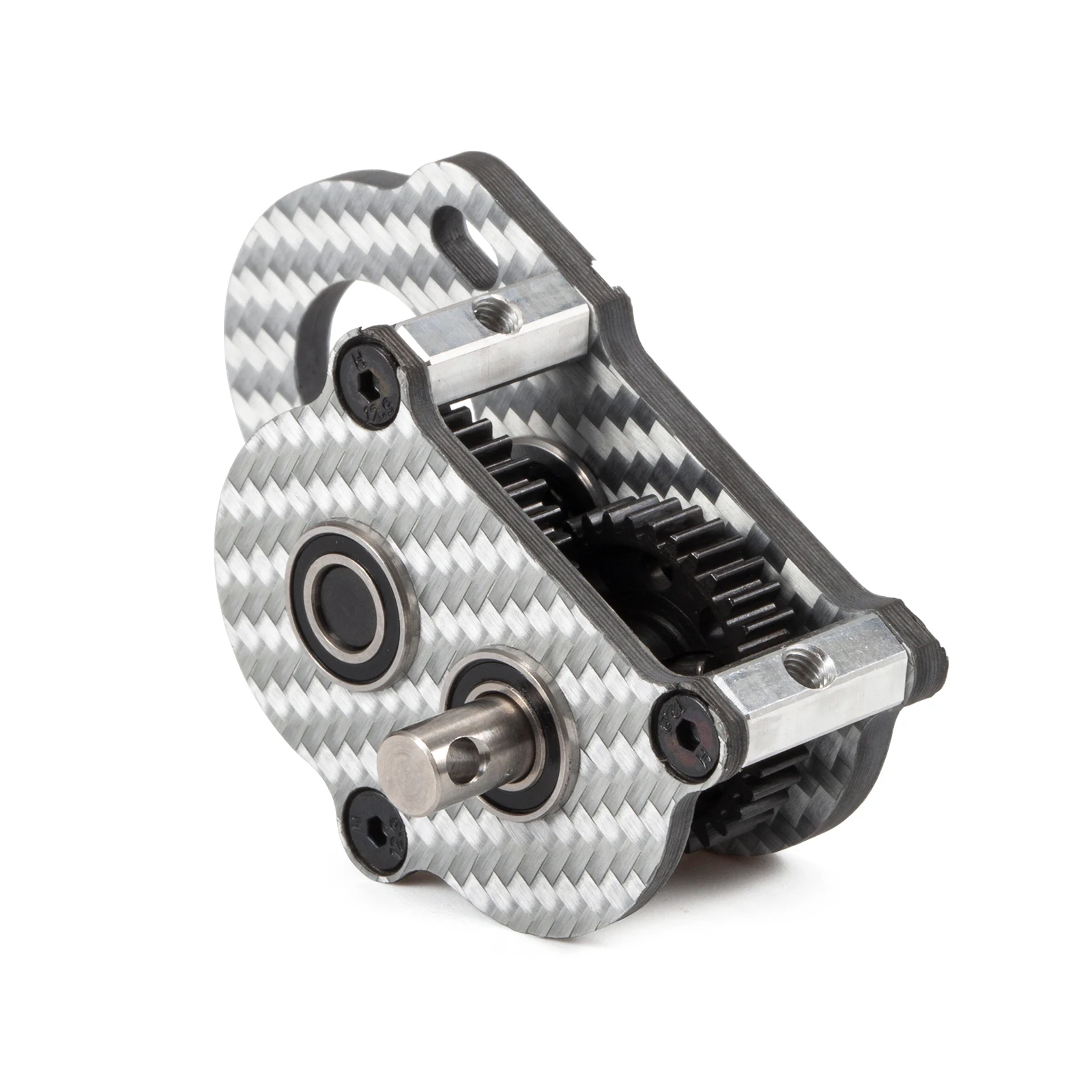

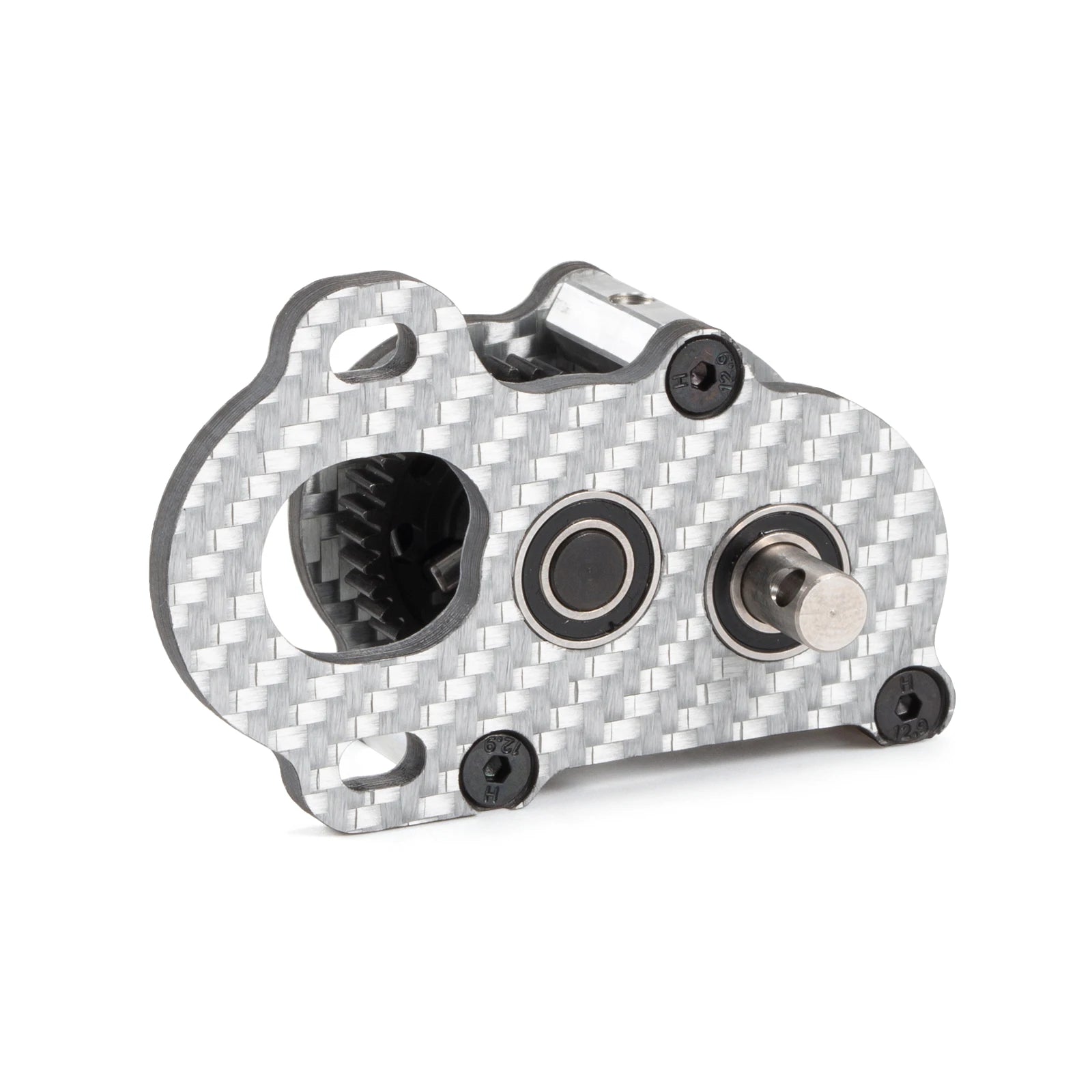

• Tiny Transmission for portal axles.
• Laser cut carbon fiber case.
• Hardened chromoly gears.
• Grade 5 Titanium 5mm output shaft.
• 30g, Ultra-Small and Ultra-Light. Ultra low center of gravity (LCG).
• Low noise and ultra smooth.

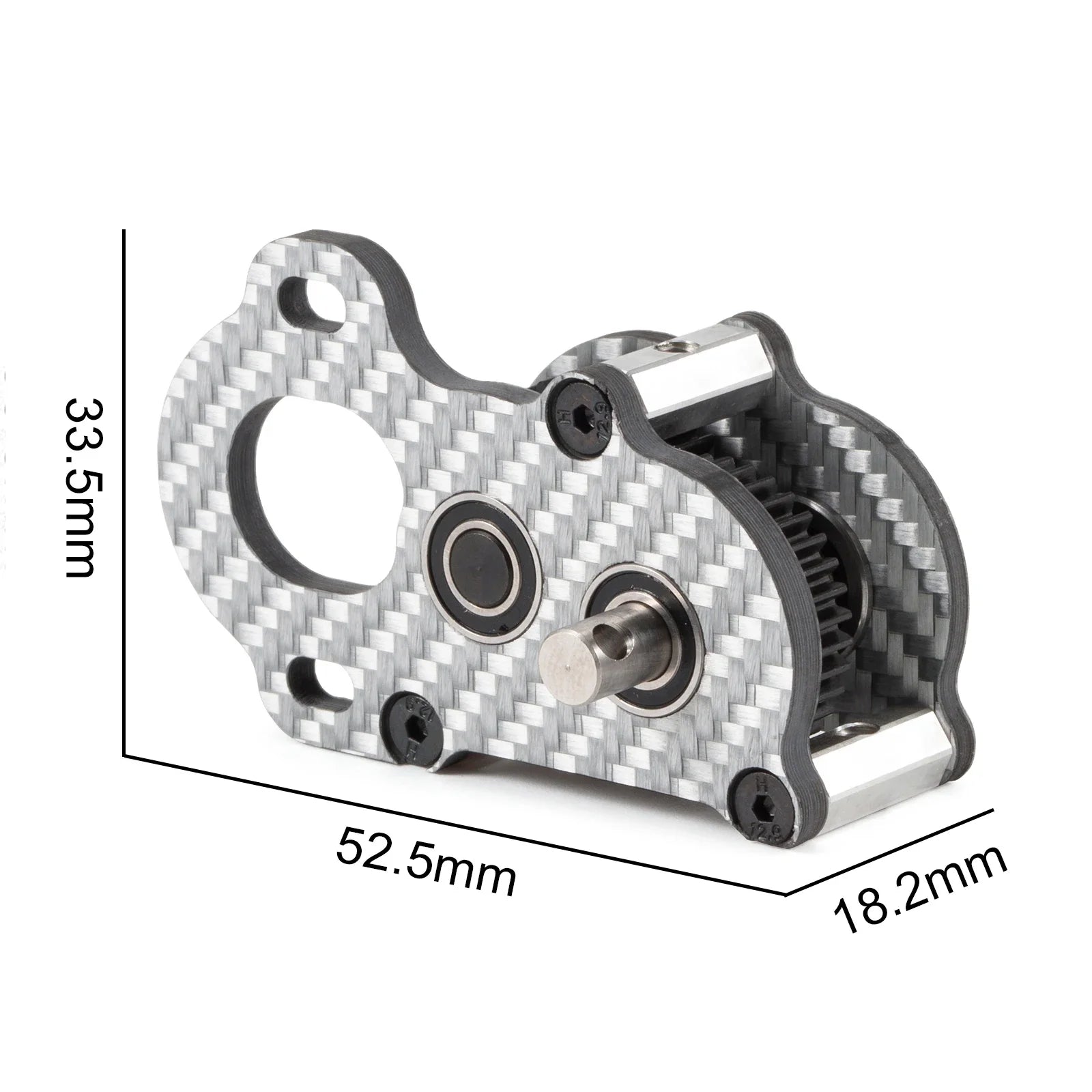

• Dimensions: 52.5mm W x 33.5mm H x 18.2mm L (not counting output shaft)
• Motor bolt holes 25mm on center. Skid plate mounting holes 27.5mm on center (M3 threaded holes).
• Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes.
• 36T Spur Gear (48 pitch), 3:1 Low gear ratio.
• Fits 48 Pitch pinions from 11T to 18T (Not Included)
Gear Ratio:
11T pinion: 9.8
12T pinion: 9.0
13T pinion: 8.3
14T pinion: 7.7
15T pinion: 7.2
16T pinion: 6.75
17T pinion: 6.35
18T pinion: 6.0

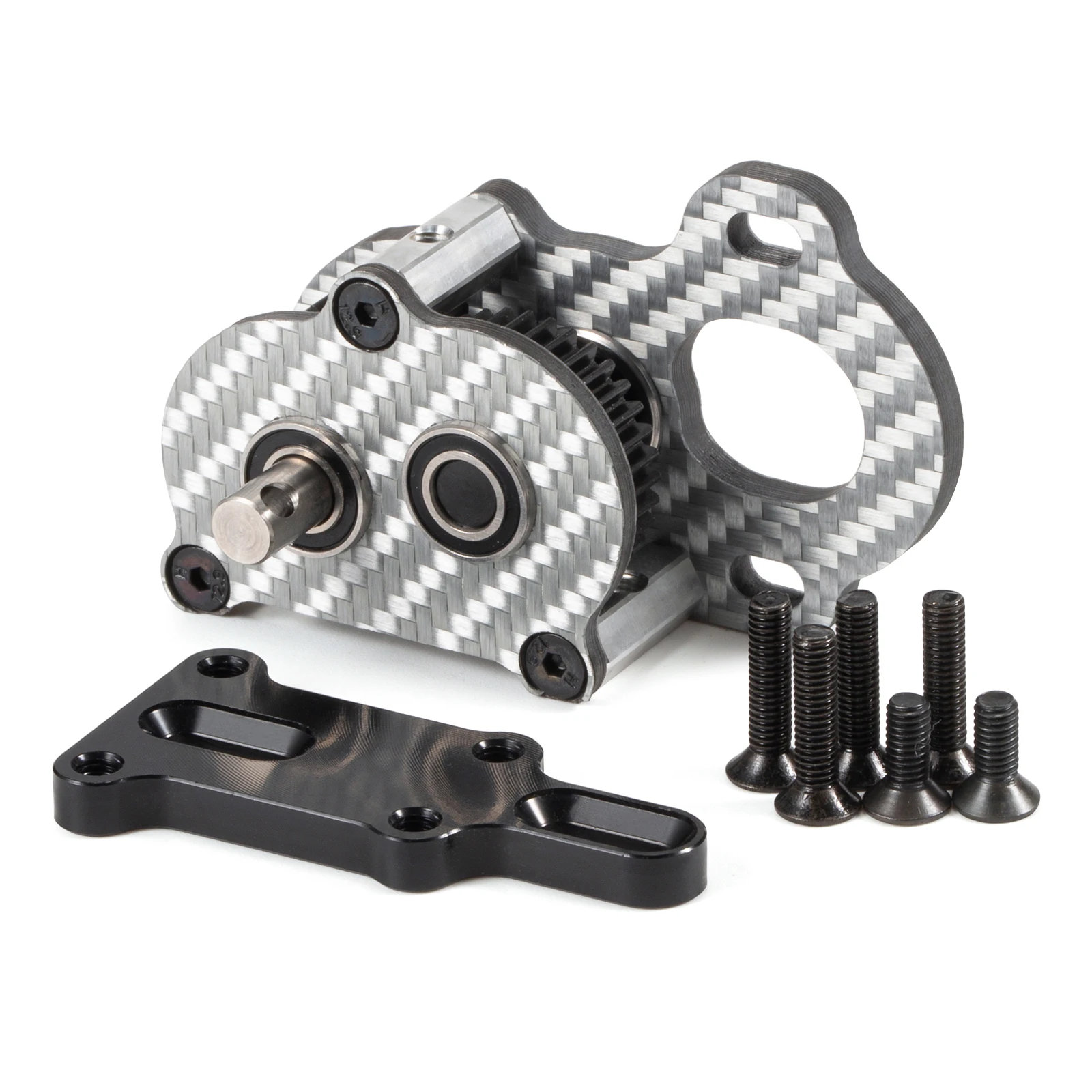

Included:
1x Tiny Transmission
1x Slidable Shim
1x Hardware Set
